| Product Name | Pre-painted Hot Dipped Galvanized Steel Coil / Sheet (PPGI) |
| Technical Standard | JIS G3321 / ASTM A755M / EN10346 |
| Grade | JIS G3312-CGCC, CGC340-570(G550), |
| ASTM A755M CS-B, SS255-SS550 | |
| EN10346 DX51D,DX52D, S220GD~S550GD | |
| Or equivalent. In full hard, semi hard and soft quality | |
| Base Material | Galvanized Coils |
| Coating Mass | Z40g/㎡ - Z150 g/㎡ |
| Thickness | 0.13mm-1.5mm |
| Width | 600mm-1350mm (usual 900 / 904 / 914 / 1000 / 1200 / 1219 / 1220 / 1250mm) |
| Coil ID | 508mm or 610mm |
| Paint Systems | Primers: Epoxy, PU |
| Top Coating: | |
| Polyester (HDP/PE) | |
| Silicon Modified Polyester (SMP) | |
| Poly Vinyl Di Flouride (PVDF) | |
| Back Coating: Epoxy, Polyester, PU | |
| Coating Thickness | Top Coating: 5+8 μm---5+20 μm |
| Back Coating: 5-24 μm (usual 5-7 μm) | |

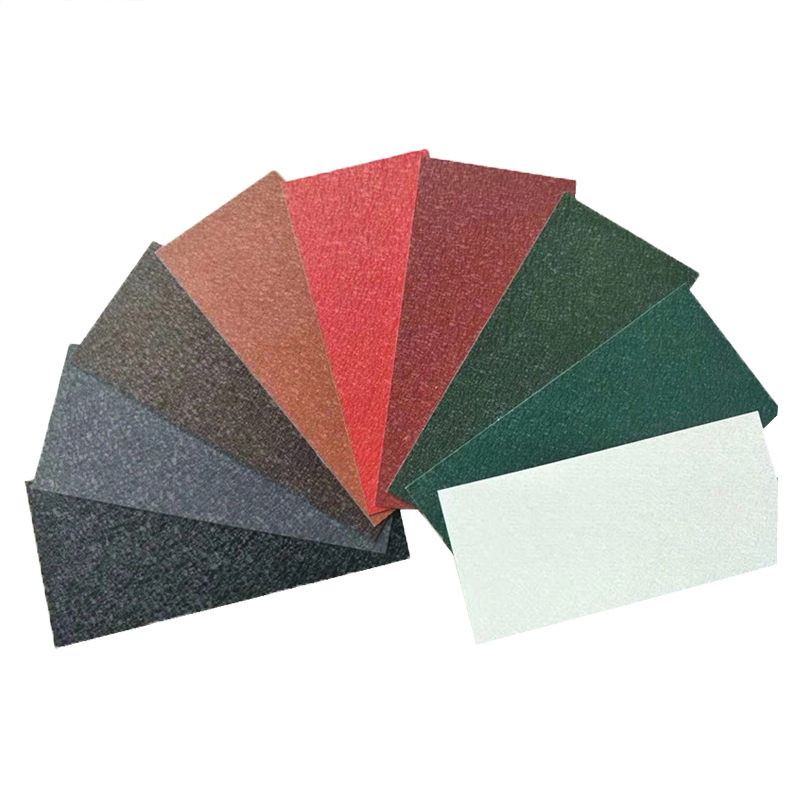

| Colours | As Per RAL Chart / Customer sample |

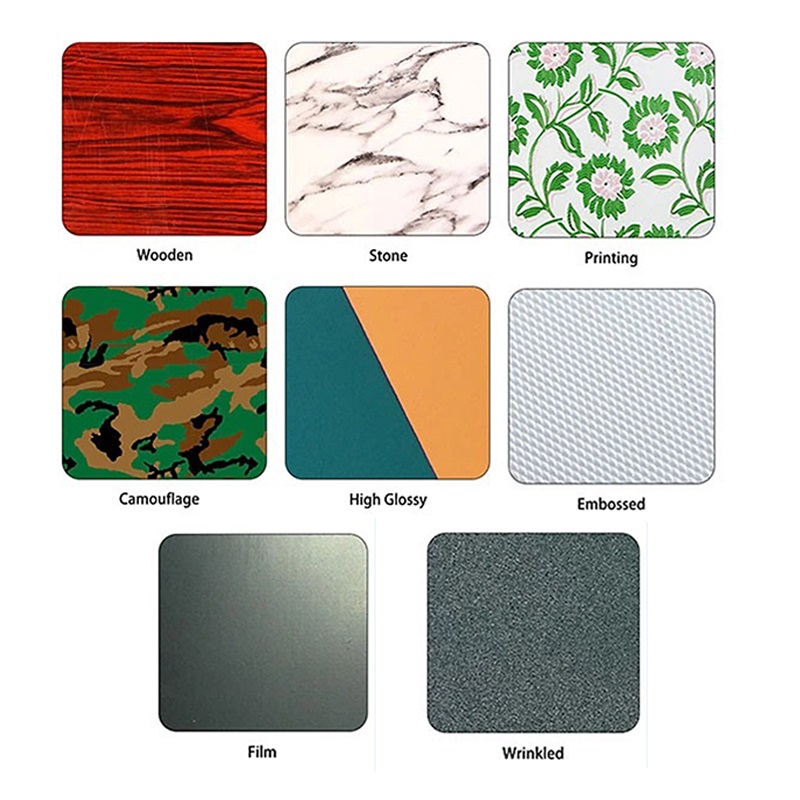

| Surface Finishes | Glossy / Matte |
| Coil Weight | 2.5MT-12 MT (usual 3MT-5MT) |
| Packing | Sea Worthy Export Packaging. Or according to customer's requirements |
| Application | Industrial panels, roofing and siding for painting |
| Loading Port | Tianjin Port/Jingtang Port/Shanghai Port, China |
| Remarks | Insurance is all risks |
| We accept the third party certificatation test |
