| Product Name | Hot Dipped Galvalume Steel Coil / Sheet (GL) |
| Technical Standard | JIS G3321 / ASTM A792M / EN10327 |
| Grade | JIS G3321 SGLCC, SGLCD, SGLCDD, SGLC400~SGLC570; SGLHC, SGLH400~SGLH540 |
| ASTM A792M CS-B, SS230~SS550 | |
| EN10327 DX51D/52D/53D/54D/56D/57D, S220GD~S550GD | |
| Or equivalent. In full hard, semi hard and soft quality | |
| (Commercial grade, Lock forming grade and Structural grade) | |
| Types | Commercial / Drawing / Deep Drawing / Structural quality |
| Thickness | 0.13mm-1.5mm |
| Width | 600mm-1350mm(usual 750 / 762 / 900 / 904 / 914 / 1000 / 1200 / 1219 / 1220 / 1250mm) |
| Type of Coating | Hot-Dipped Galvalumed |
| Zinc coating | AZ40 g/㎡ - AZ220 g/㎡ |
| Surface Treatment | Chromed(Cr 3+, 6+,0+) / Chromate free passivation |
| Surface | Anti-Finger Print / Non Anti-Finger Print |
| Oiled | Oiled / Slightly Oiled / Dry |

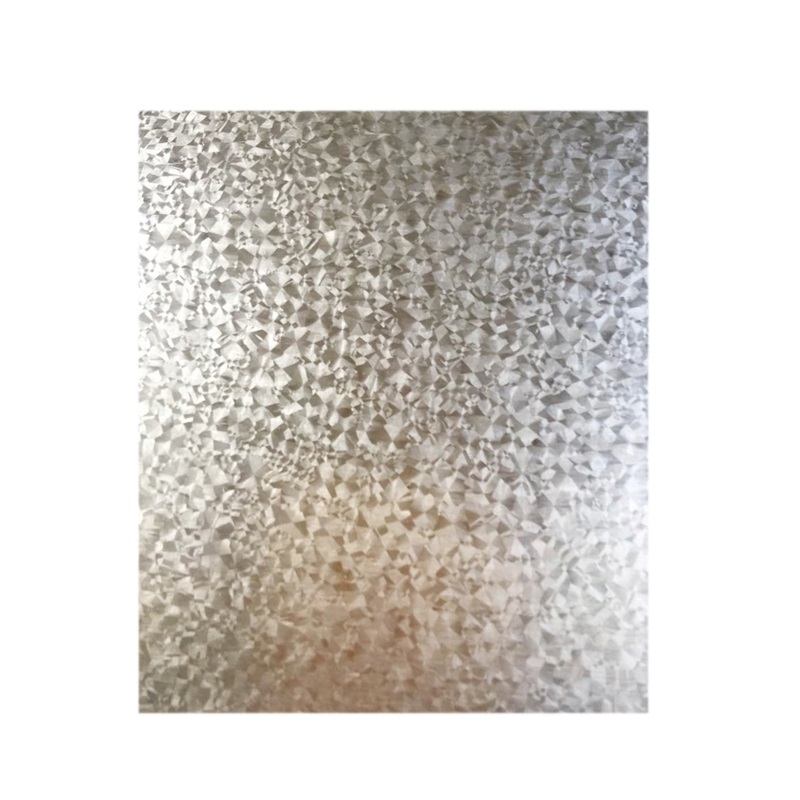

| Spangle | Regular spangle |
| Coil ID | 508mm or 610mm |
| Coil Weight | 2.5MT-14 MT (usual 3MT-5MT) |
| Package | Sea Worthy Export Packaging. Or according to customer's requirements |
| Application | Industrial panels, roofing and siding for painting |
| Loading Port | Xingang port, Jintang port, Shanghai port, China |
| Remarks | Insurance is all risks |
| We accept the third party certificatation test |
